This time, the goals were simple:
- Remove most of the stock wiring harness plugs, all stock relays, and all fuses
- Incorporate Motogadget mo.unit blue to control ignition, starting, lights, horn, and other functionality
- See more here: /motogadget-wiring/
- Replace remaining stock relays with the MSD solid-state relay block
- https://www.holley.com/products/electrical/wiring_and_relays/parts/7564
- Main relay
- Fuel pump relay
- Engine fan relay
- Route all the wiring correctly
- Front-to-rear wiring attached to transaxle ladder and transmission
- Driver's side wiring (lights, fan) routed through the firewall near the pedals
- Passenger side wiring (main engine harness, lights) routed through a custom notch cut into the Exocet aluminum passenger footwell kick plate

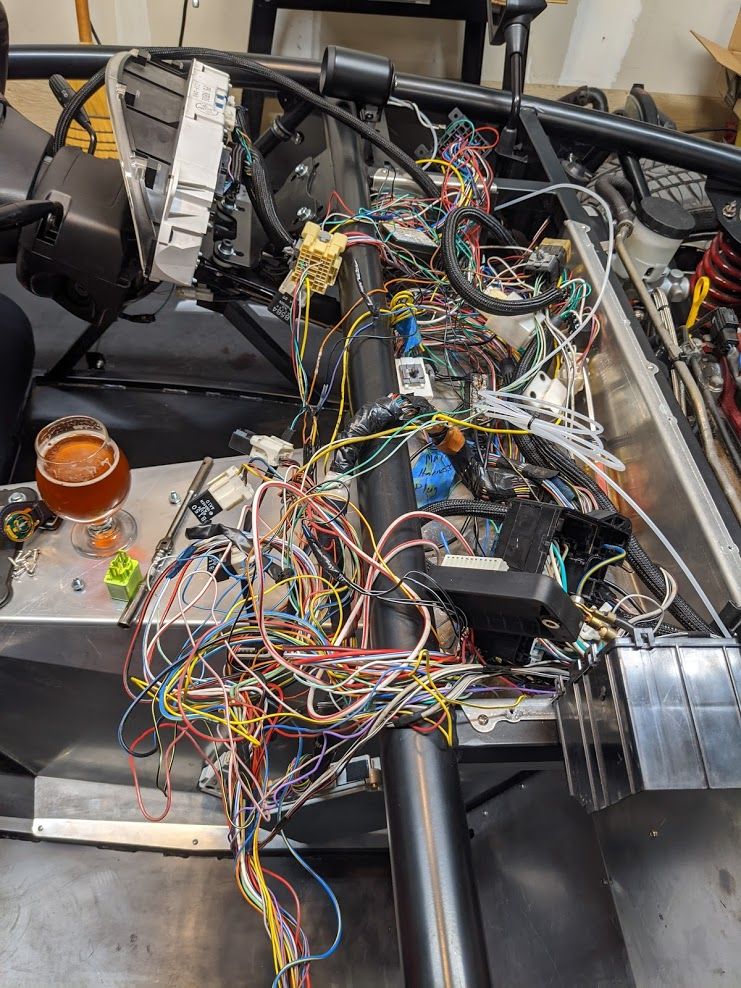

Before: (and yes, the beer was required)

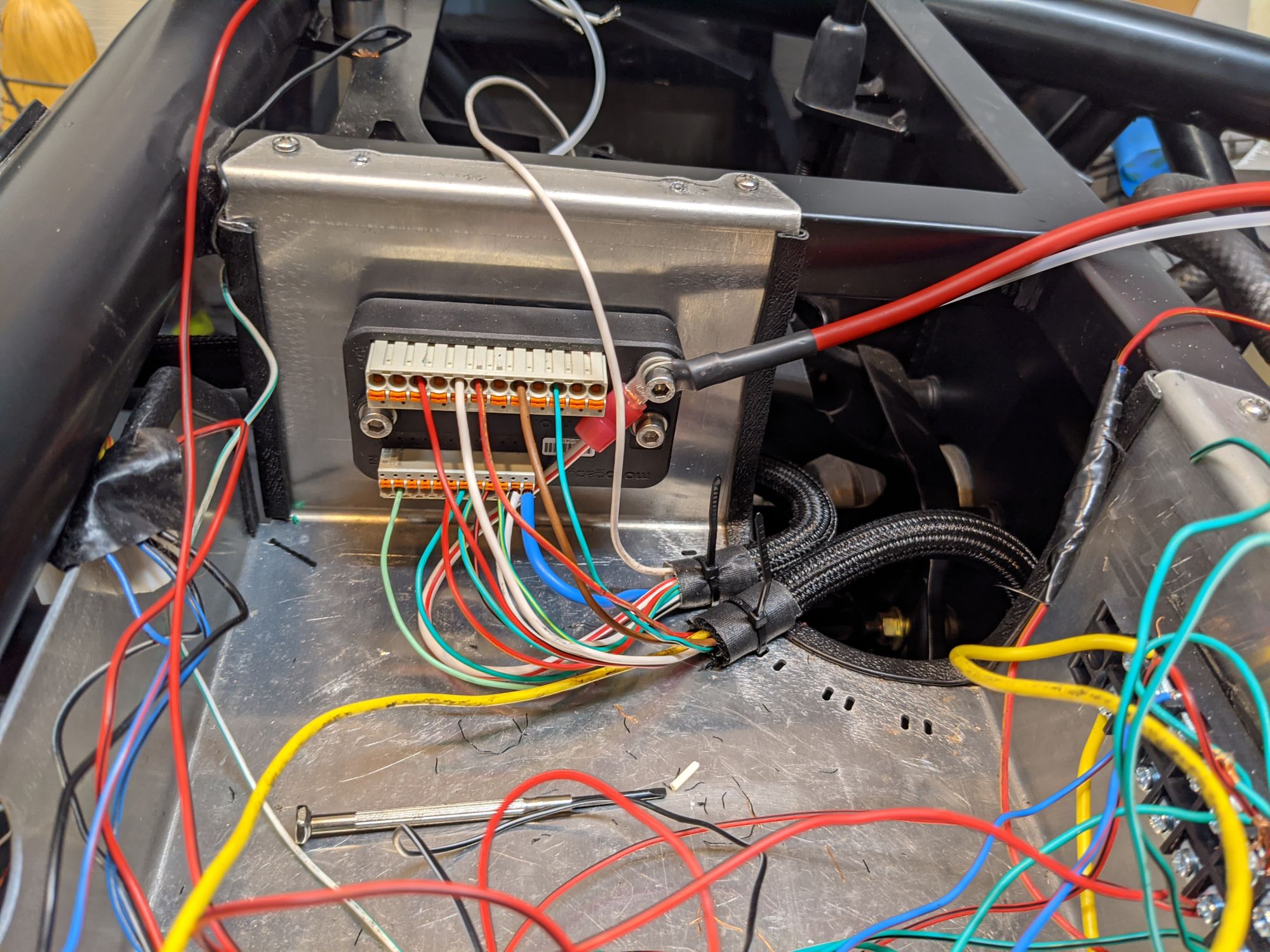

During:

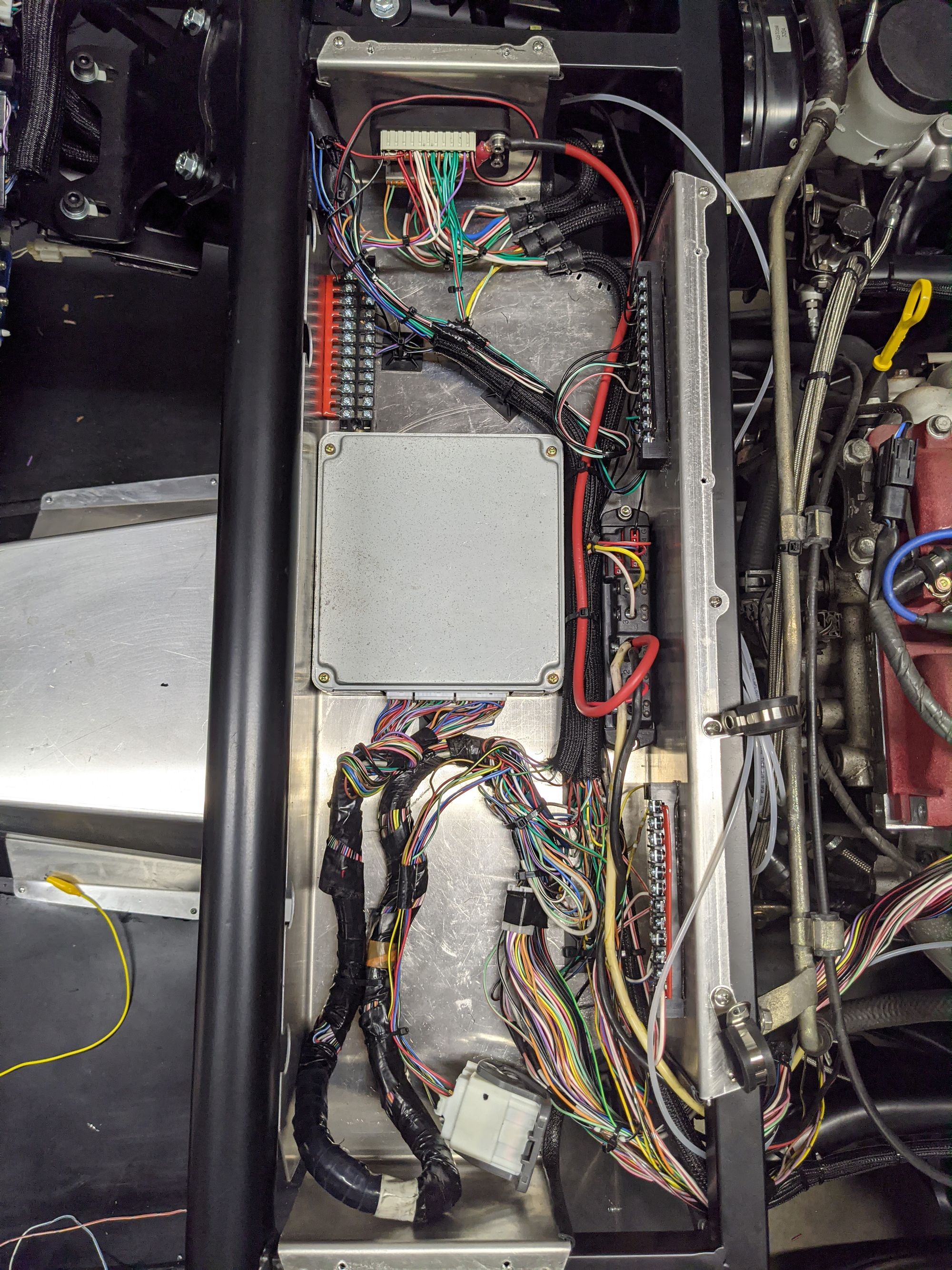

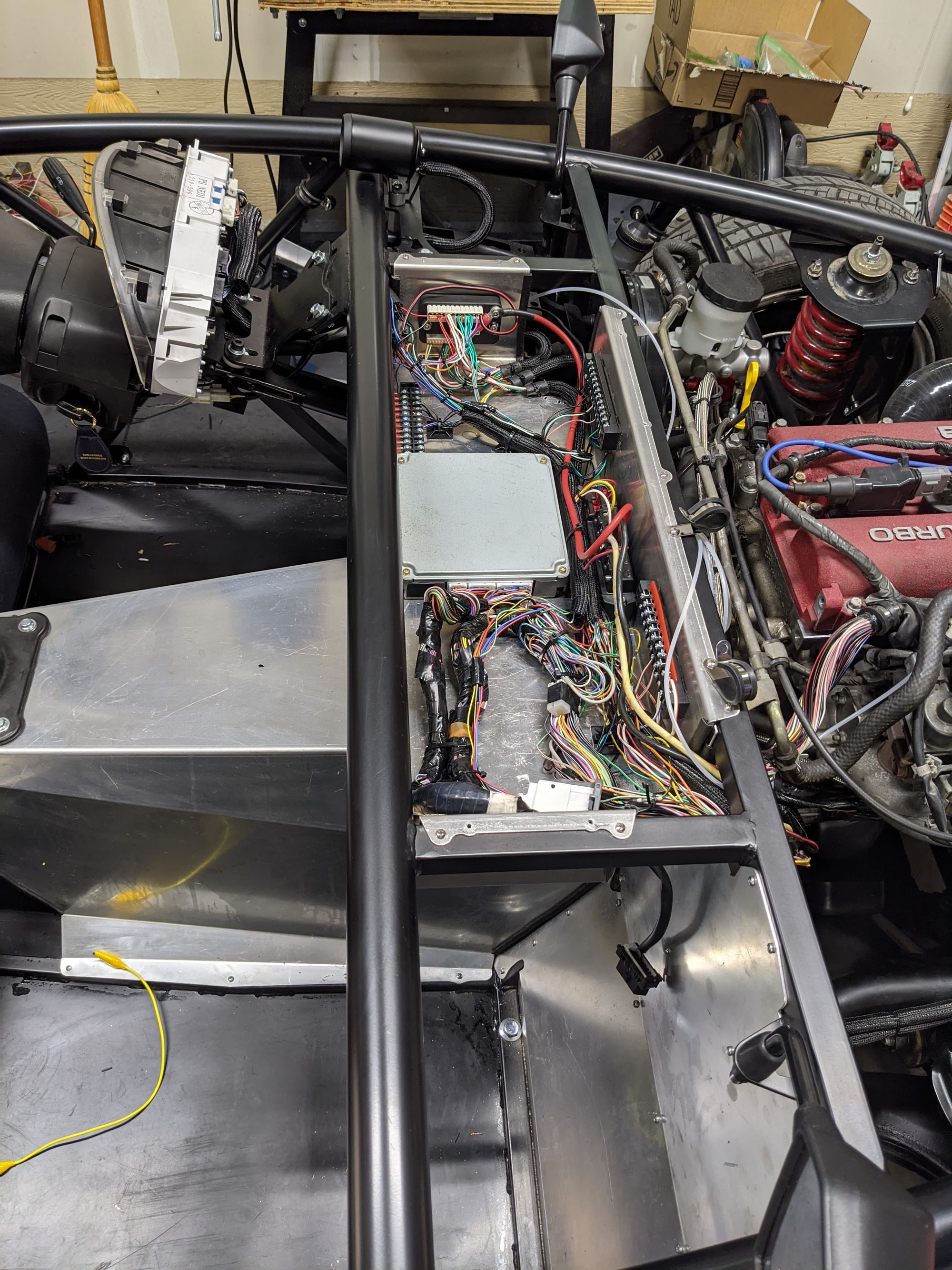

After:
