The stock Miata neck sticks out ungainly from the Exocet, and even trimmed down it's a terrible look. There are several possible solutions for this, all of which are dependent upon your choices around bodywork: yes/no, and how much fabrication you wish to take on.
OEM

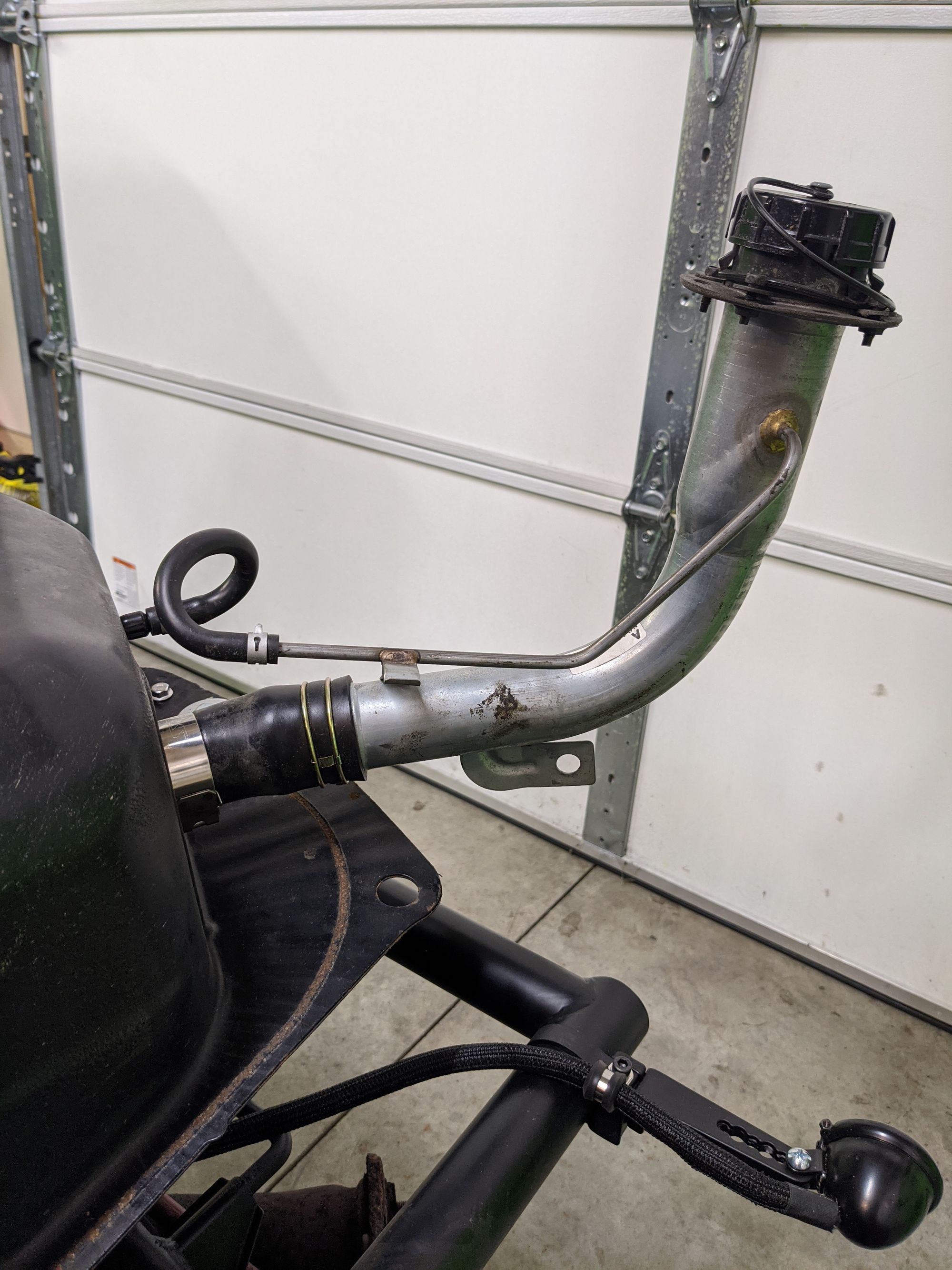

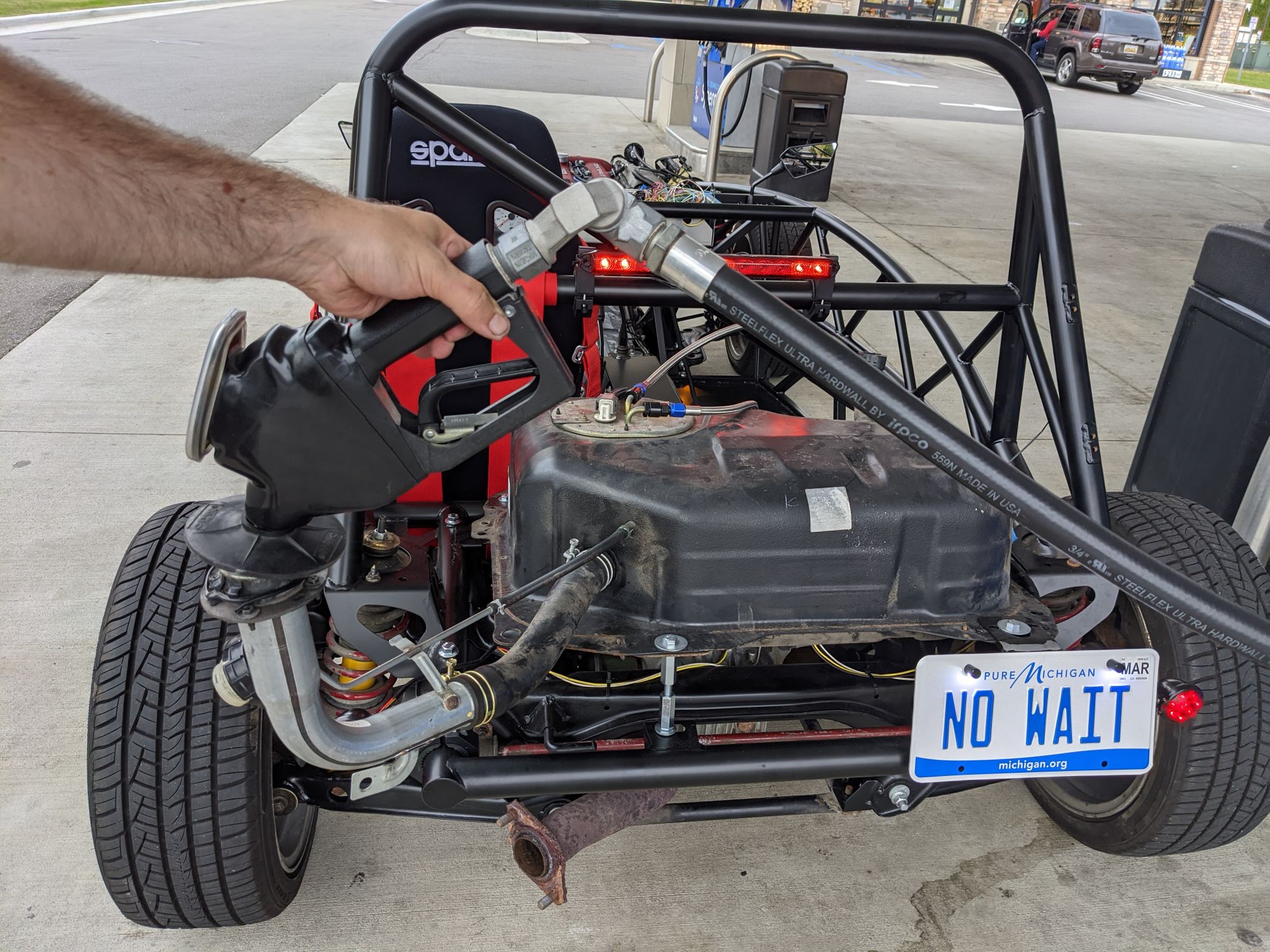

The full, undoctored NB Miata factory fuel tank filler neck on an Exocet.
OEM, shortened

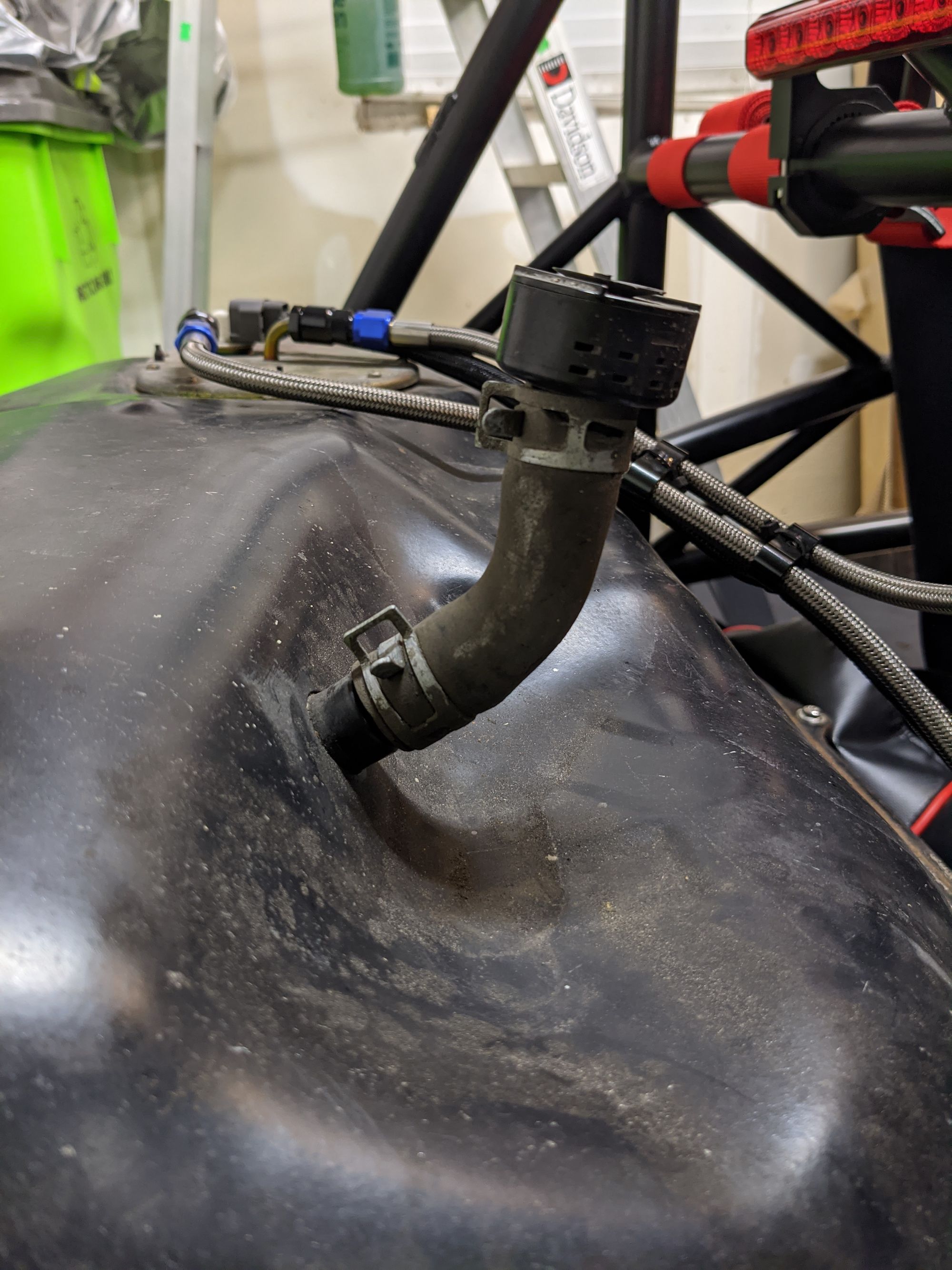

Shortening the rubber portion of the filler is possible, though the gas cap is still well outside of the chassis.
Custom
Swapping out the stock neck entirely is the only real option. Fortunately for me I went with zero bodywork, so making everything fit inside of a fiberglass shell wasn't a requirement.

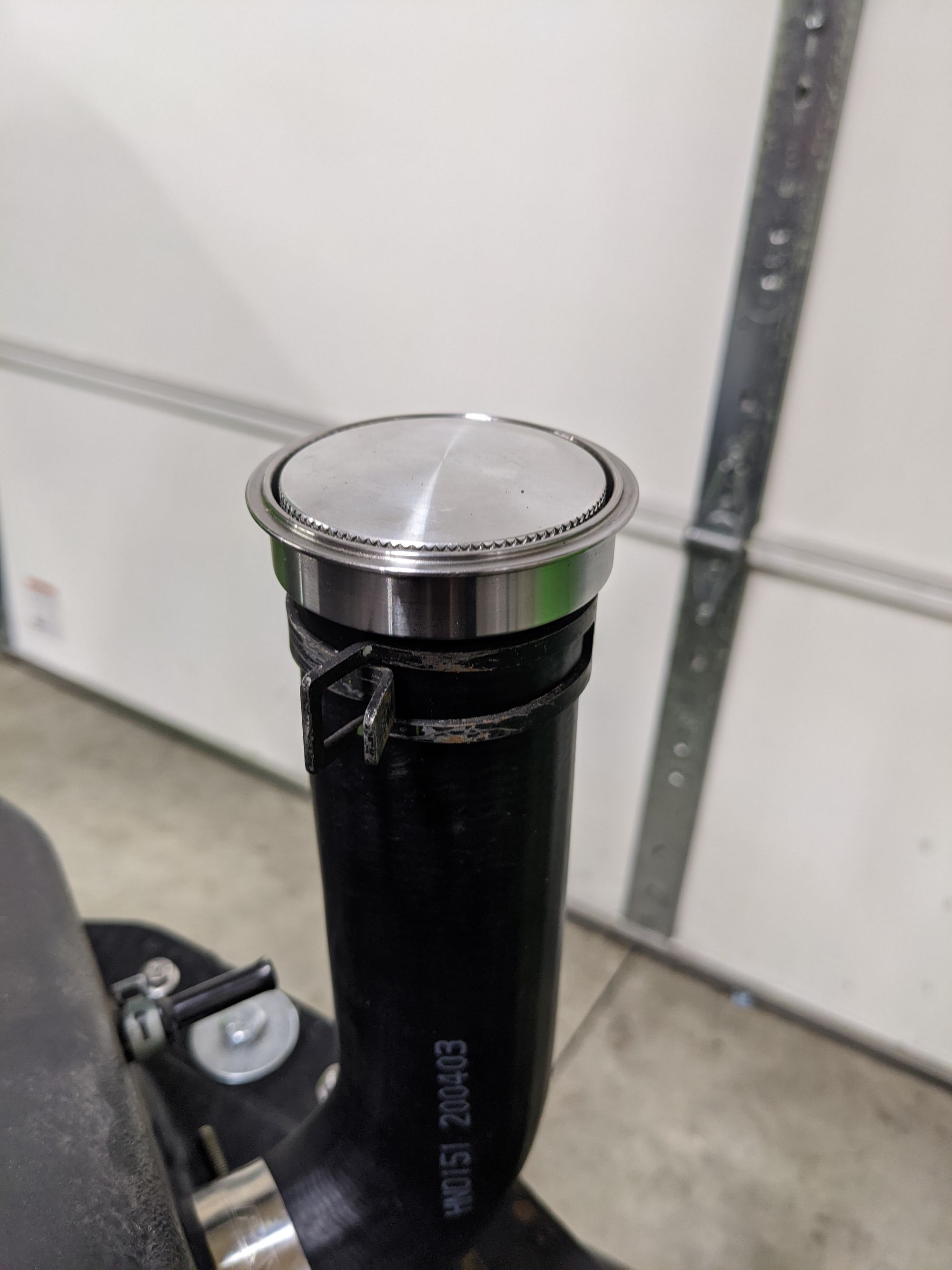

Step 1 parts list:
This will at least clean things up, but it does lack proper bracing and venting.
- FNH169 Fuel Filler Hose (multiple brands are available from other sellers)
- Low Brow Customs' Custom Flush Mount Aluminum Pop-Up Gas Cap and Weld In Bung
Notes: plug the vent tube above the filler neck for now. The main vent (originally part of the charcoal canister system) is more than sufficient.

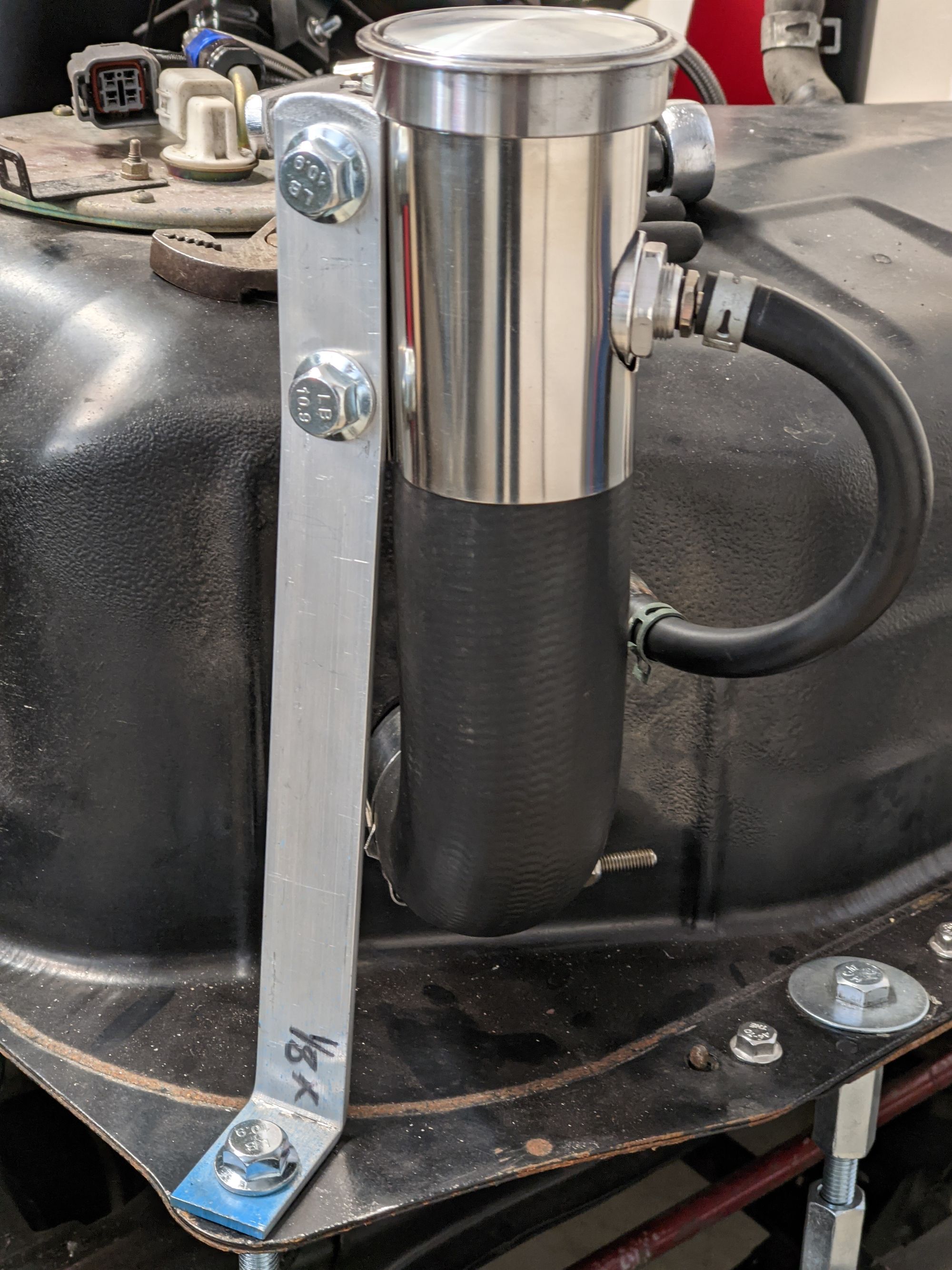

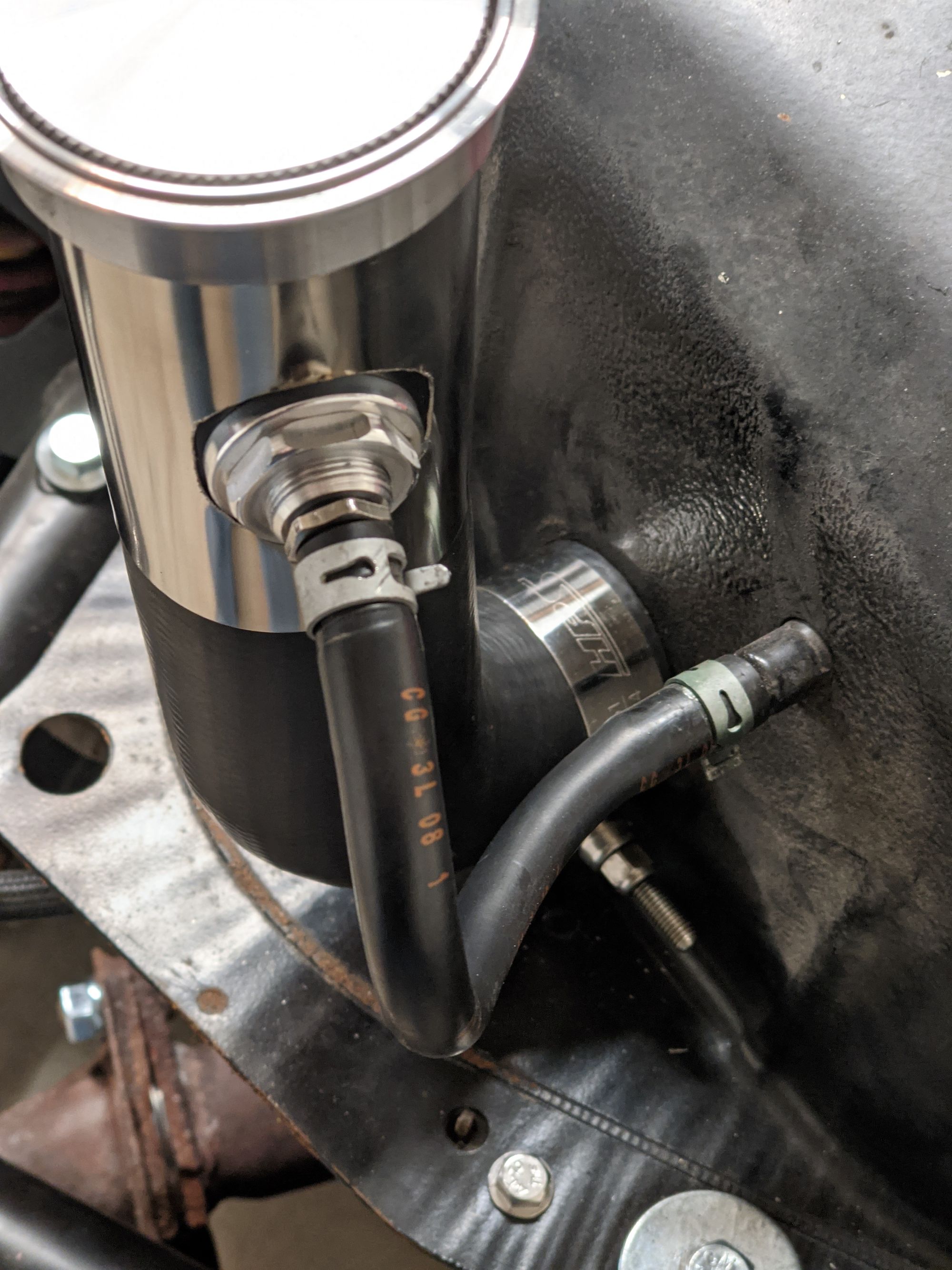

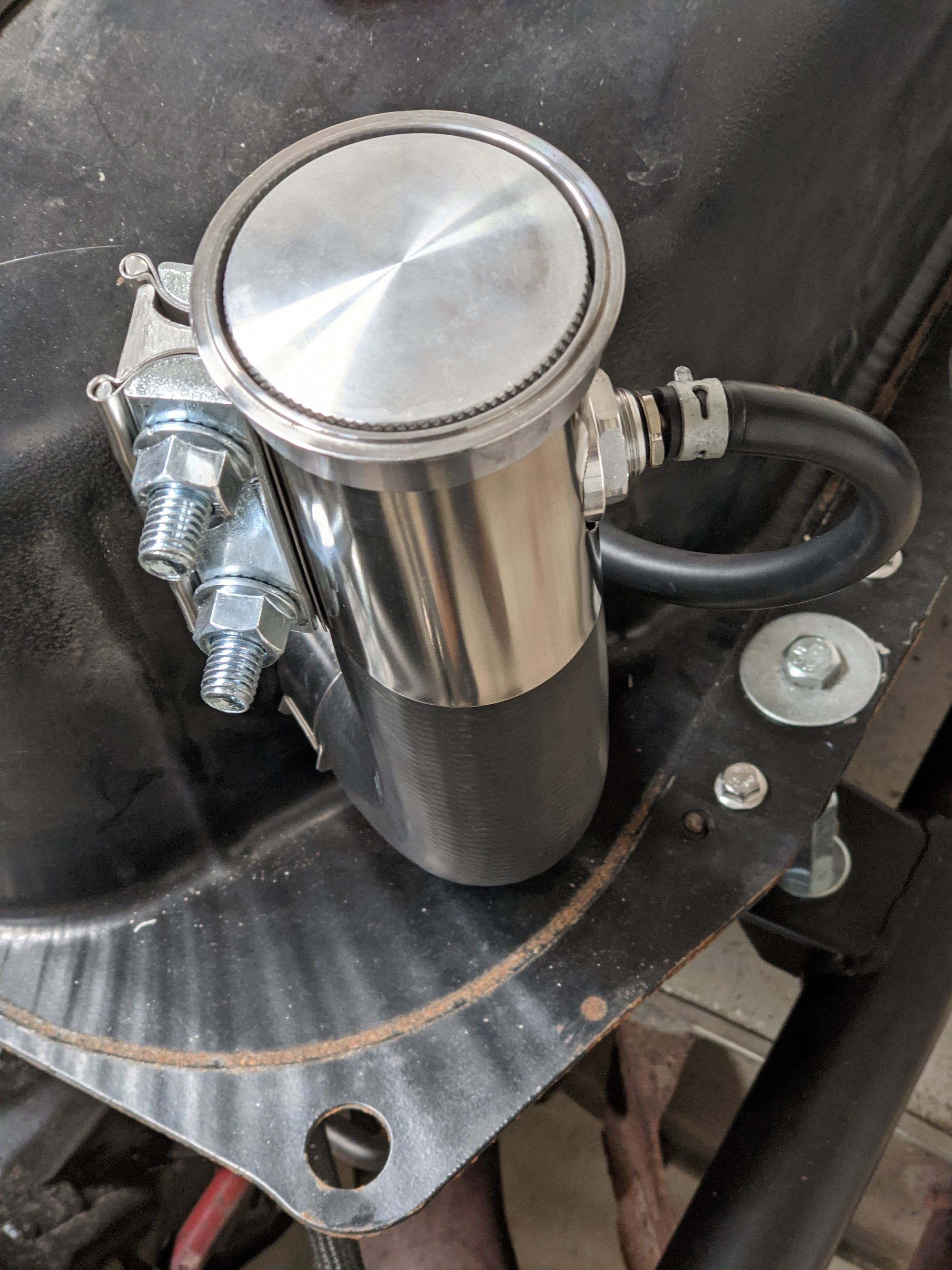

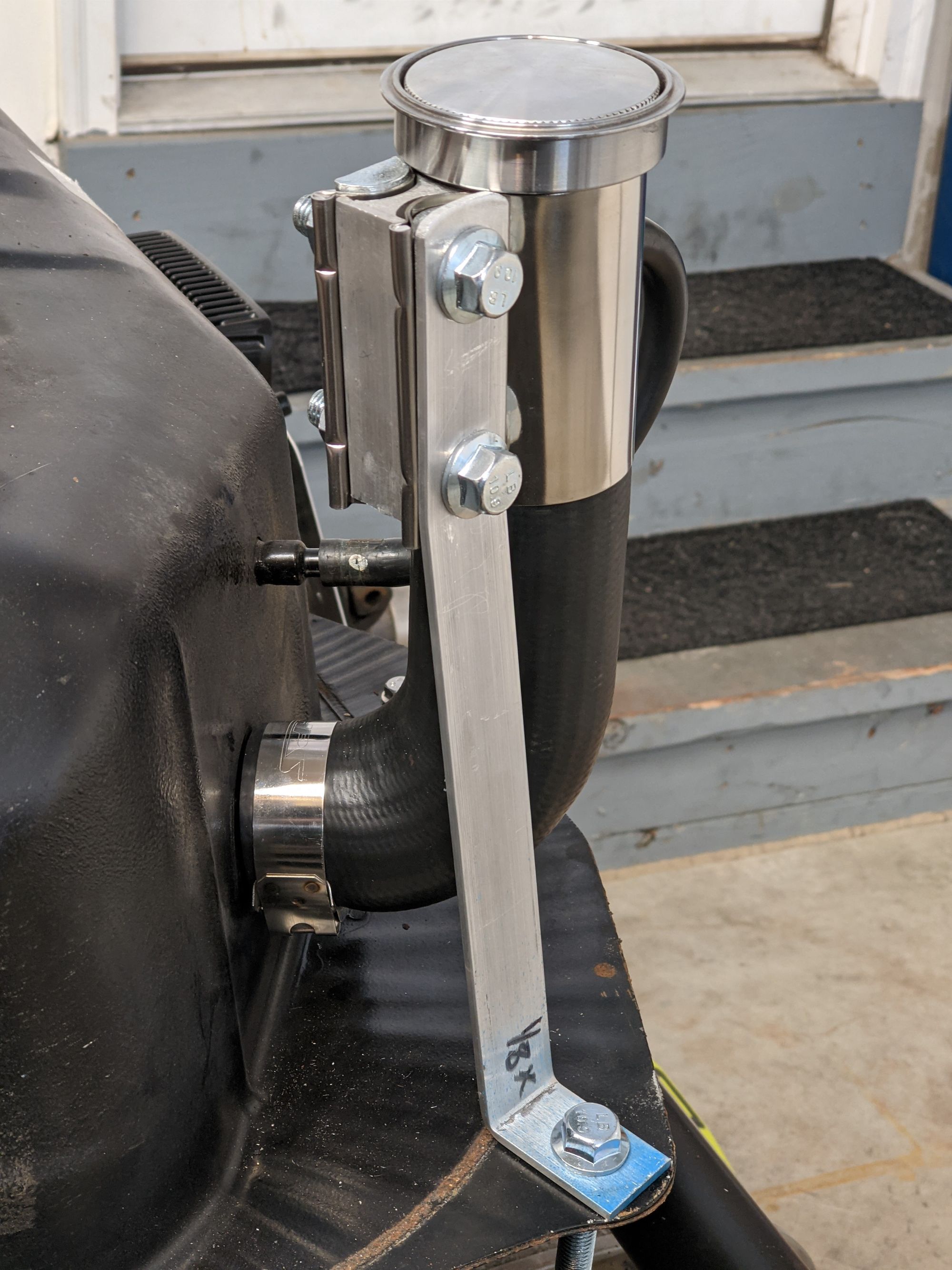

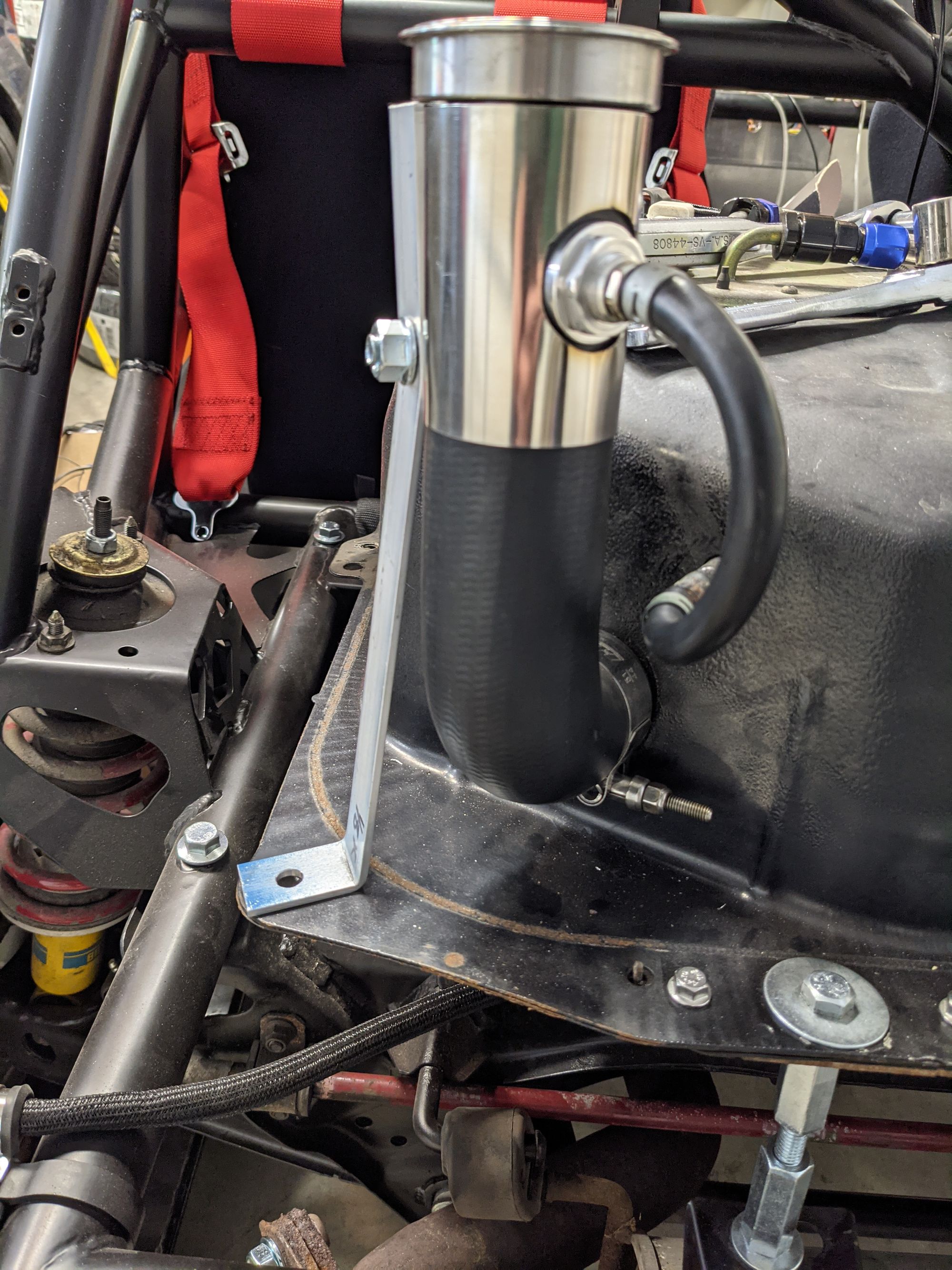

Step 2 parts list:
... more to come on this.
- Aluminum flat stock (note: steel would be better)

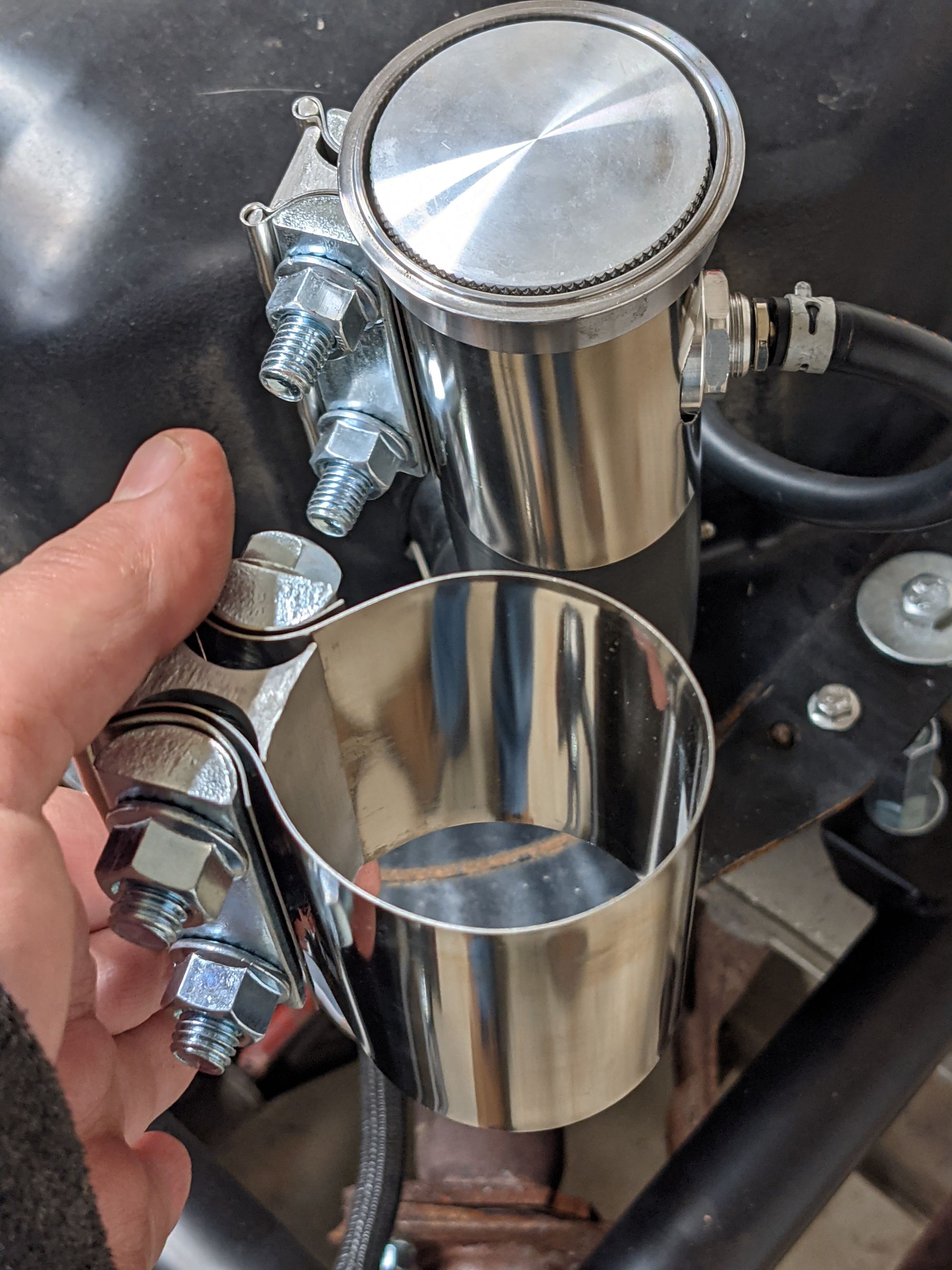

- 2" Band Clamp Exhaust Sleeve

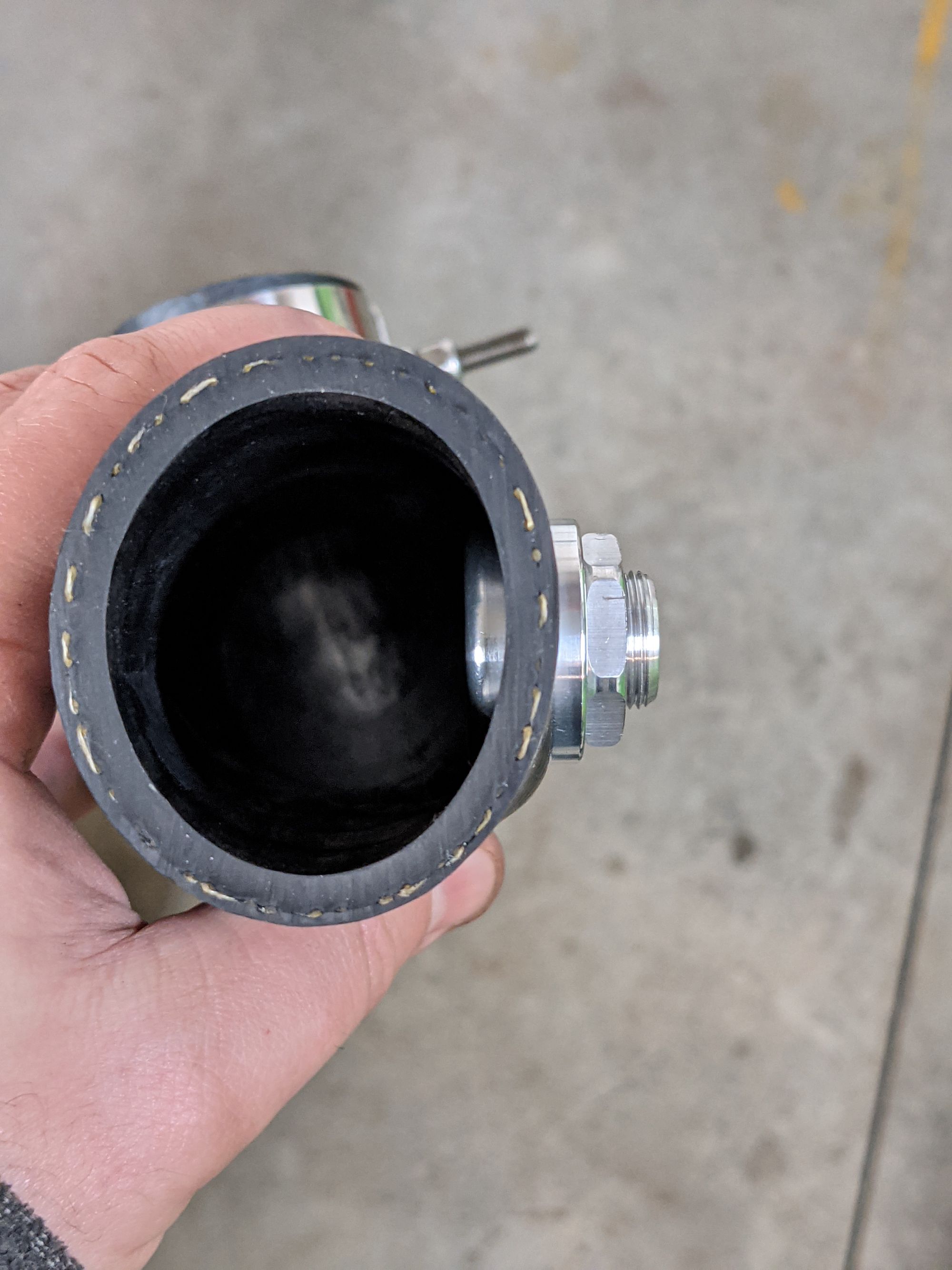

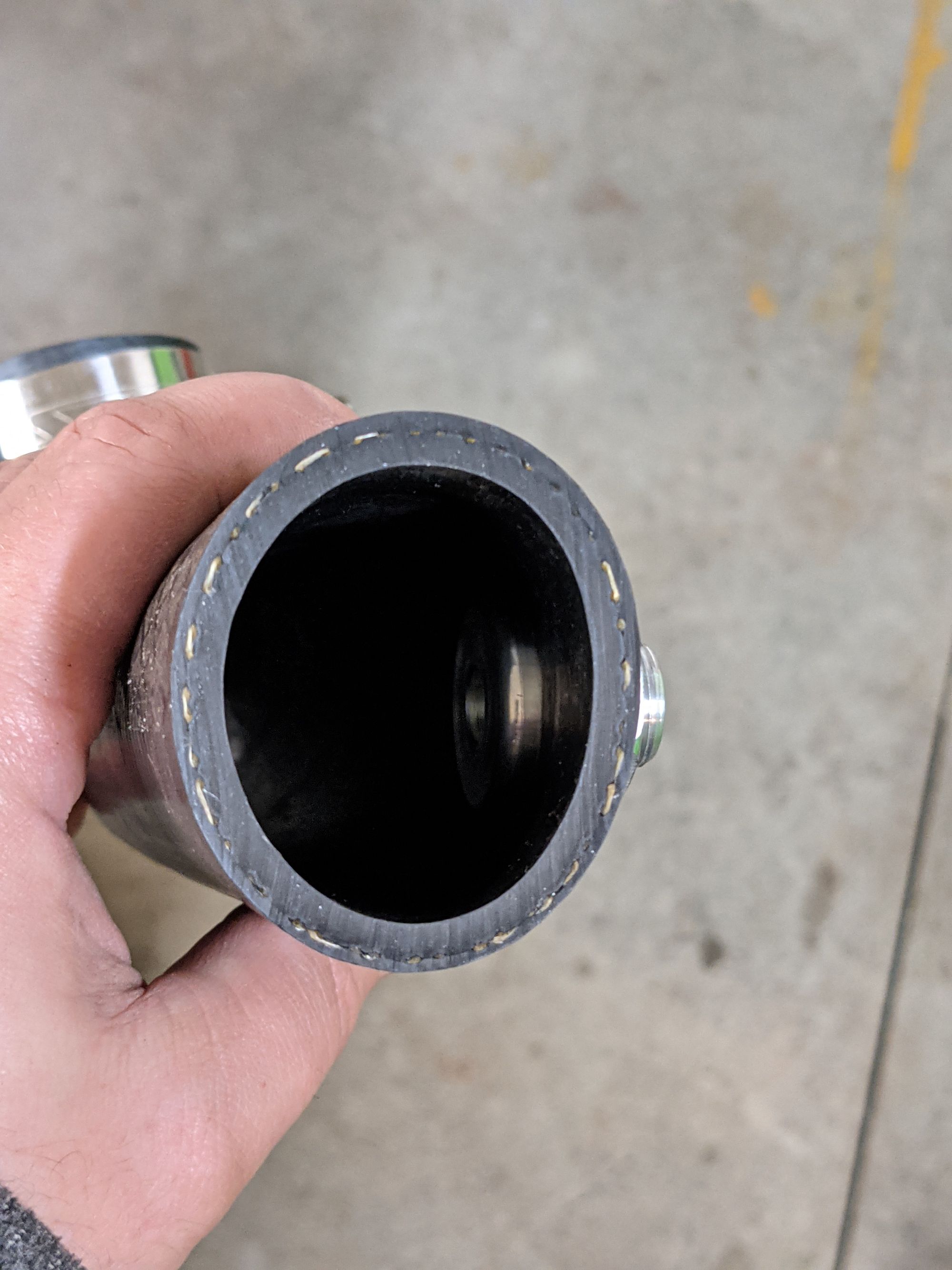

- Revotec Threaded Self-Sealing Fitting, 1/8" NPT Internal Thread (SST1/8)
Step 3 parts list:
- 18mm cap and clamp

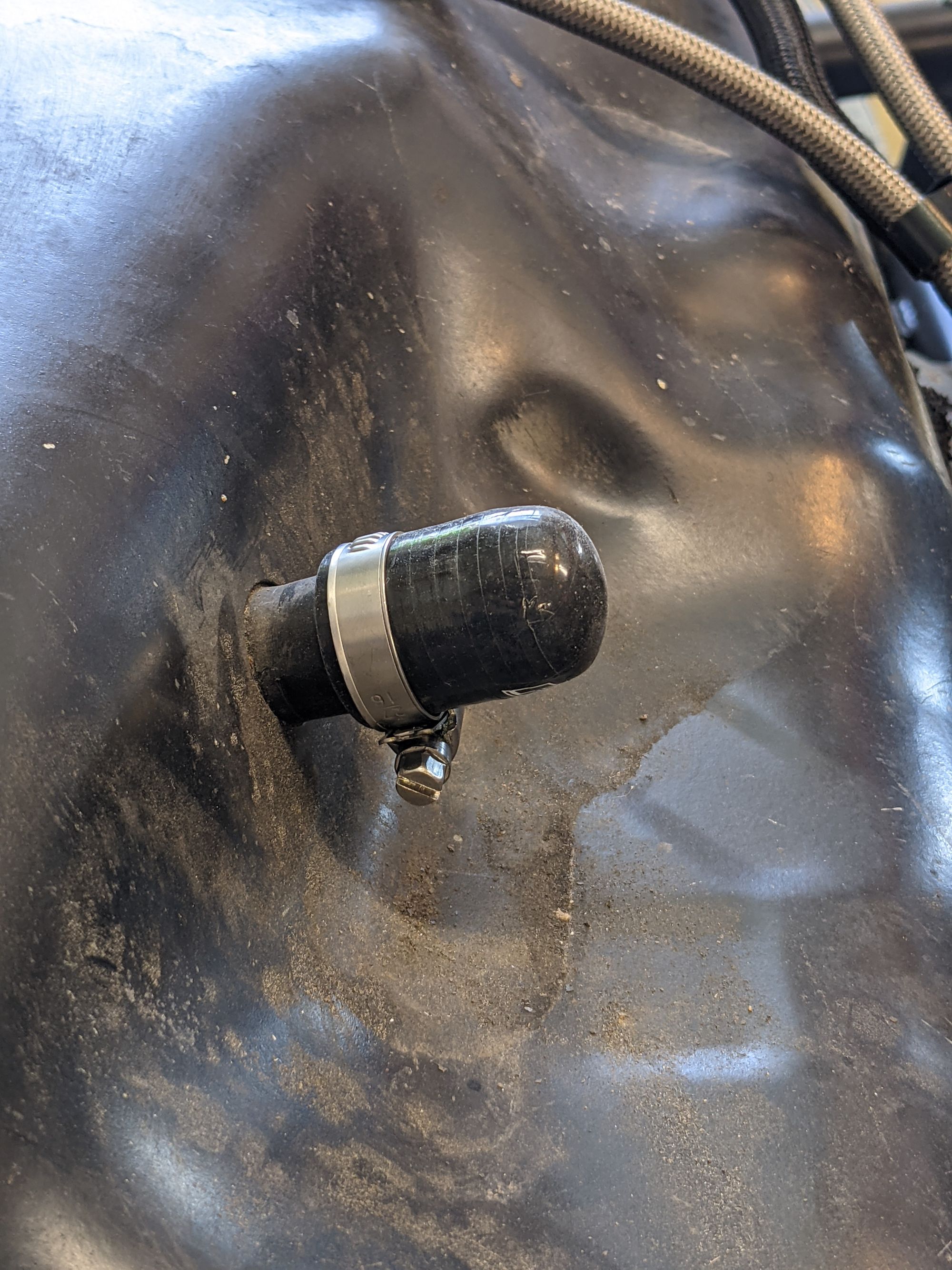

Plugging the stock charcoal port on the fuel tank. Still testing this out to ensure it's working correctly in conjunction with the vented gas cap...
